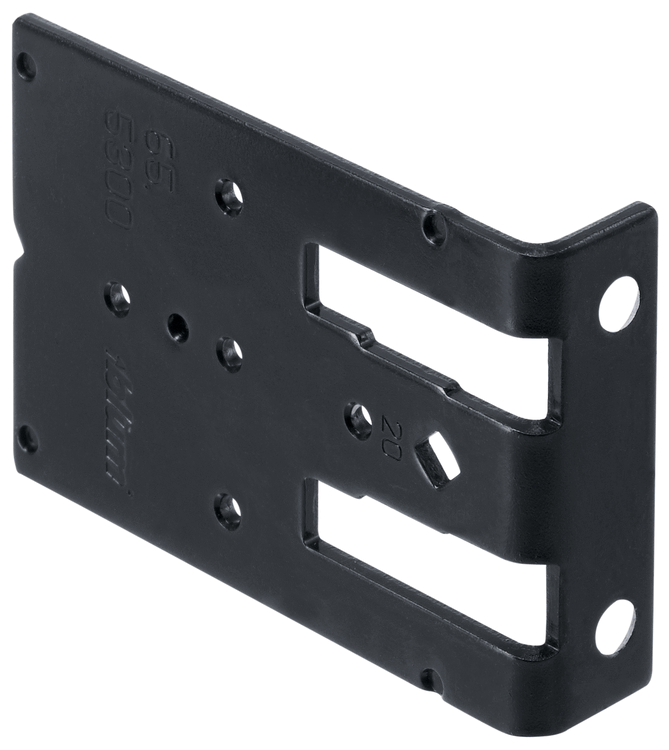

Blum Mounting Plate Template

For pre-boring TIP-ON for doors wing and in-line adapters. It can also be used to bore for wing (37 mm) and in-line (20 mm) mounting plates. An additional hole location is added (37 mm) for an in-line adapter for standard doors.

Simple location of adapter and mounting plate screw positions. Pilot bore 2.5 mm diameter holes for wood screws
