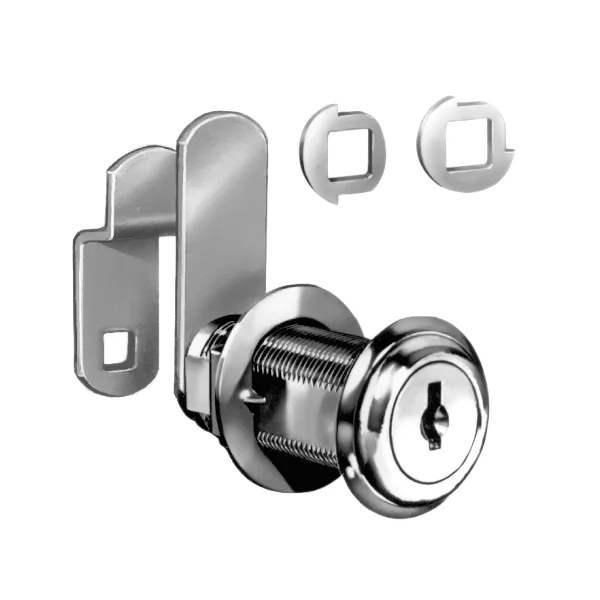

National C8060-Y21 Disc Tumbler Cylinder Cam Locks KA #415
National C8060-Y21 Disc Tumbler Cylinder Cam Locks KA #415 - Image 2

Product

National C8060-Y21 Disc Tumbler Cylinder Cam Locks KA #415

SKU: 226183

For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length

Choice of either 90° or 180° cam turn. Key removable in both locked and unlocked positions.

Will key together with all other disc tumbler locks using D8785 key blank. See Catalog for available keying. Master keying to E41A using D8783 key blank.

Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and two stop washers. If flat washer (for metal) is needed, order C2015-2C separately

21 in stock

  • 11 in Boise
  • 10 in Salt Lake City

Specifications

Brand National Cabinet
Product Type Disc Tumbler Cylinder Cam Locks
Finish Matte Black
Mounting Type Lipped/Overlay or Flush
Cylinder Length 1-3/4"
Key Type #415
Max Material Thickness 1-7/16"
KA Codes 5
